Engineered Timber / allJOIST
The best floors begin beneath your feet.
Engineered I-joist floor systems with a 45 mm flange, in depths from 200 to 360 mm and lengths up to 12 metres. Our technical team designs your floor system from your plans.
Engineered I-joist floor systems with a 45 mm flange, in depths from 200 to 360 mm and lengths up to 12 metres. Our technical team designs your floor system from your plans.
Send us your plans and we will lay out the floor system, complete with a take-off. Sizes are depth × flange width in millimetres.
| Size (mm) | Availability |
|---|---|
| 200 × 63 | Lengths 3.6 – 12.0 m |
| 240 × 63 | Lengths 3.6 – 12.0 m |
| 300 × 45 | Lengths 3.6 – 12.0 m |
| 300 × 63 | Lengths 3.6 – 12.0 m |
| 300 × 90 | Lengths 3.6 – 12.0 m |
| 360 × 90 | Lengths 3.6 – 12.0 m |
| Lengths (m) | 3.6 · 4.2 · 4.8 · 5.4 · 6.0 · 7.2 · 8.4 · 9.6 · 10.8 · 11.4 · 12.0 |
Or talk to Allied directly about stock, lengths and availability for your next job.

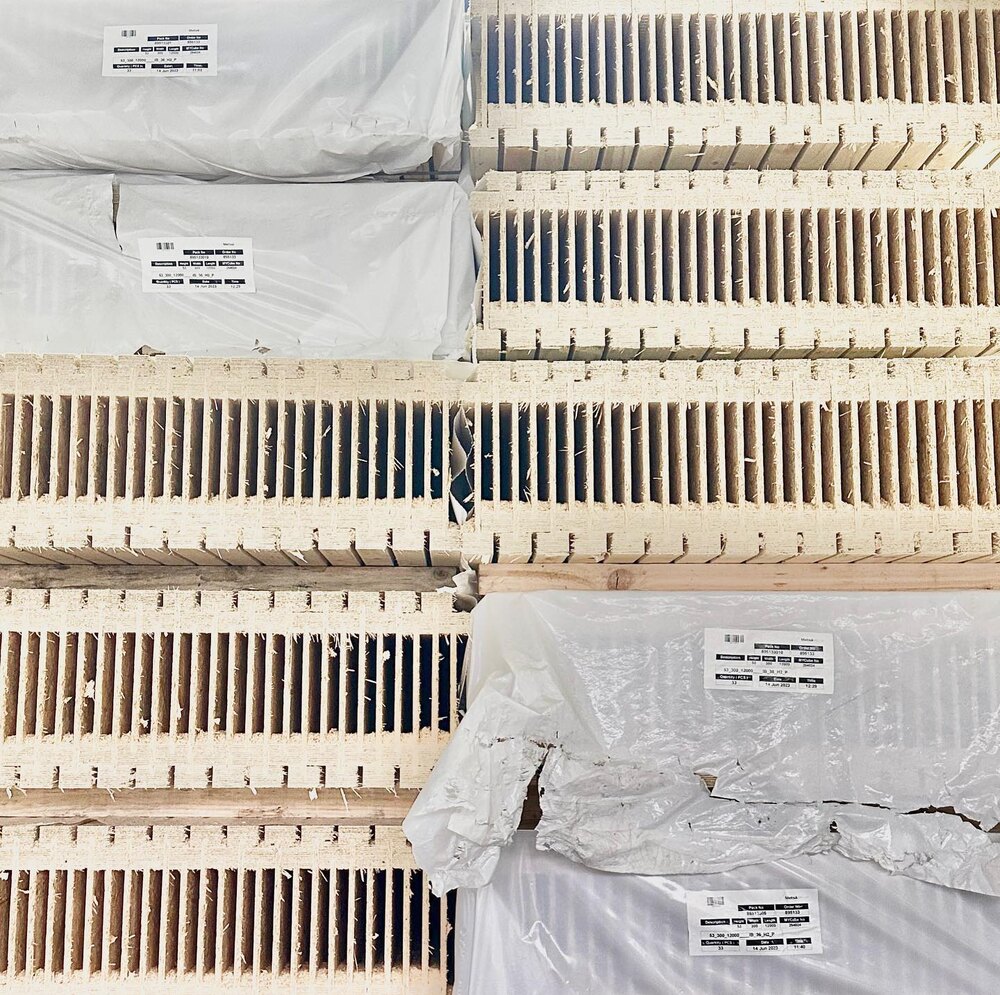

allJOIST I-joists have a 45 mm wide flange, giving a generous nailing and gluing surface for flooring above and ceiling linings below.
H2S is a hazard-class treatment for termite protection in enclosed, above-ground framing south of the Tropic of Capricorn. It is applied to the LVL at manufacture, so framing arrives protected with no site treatment needed.
H2S does not protect against weather exposure in service. For in-ground or exposed use, ask us about H3, H4 and H5 treated hardwood.
Allied’s LVL and I-joists are up to half the weight of competing products, which means they are easier to lift, carry and place on site, with less strain on the crew and faster installation.
Weather-Guard is a factory-applied sealer that limits moisture uptake while the frame is exposed during construction, helping the timber stay straight and dimensionally stable until the roof is on.
Can’t find it? Call 1300 255 433 or send us a message.
